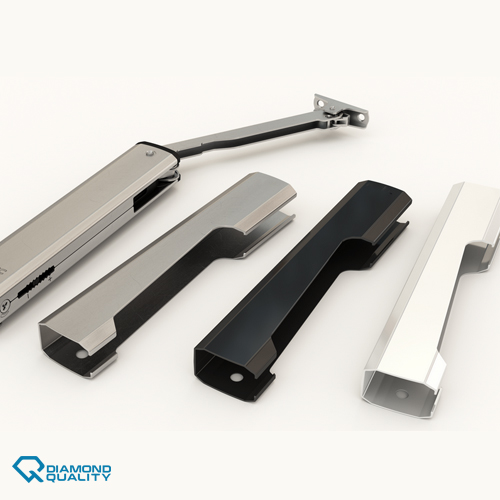

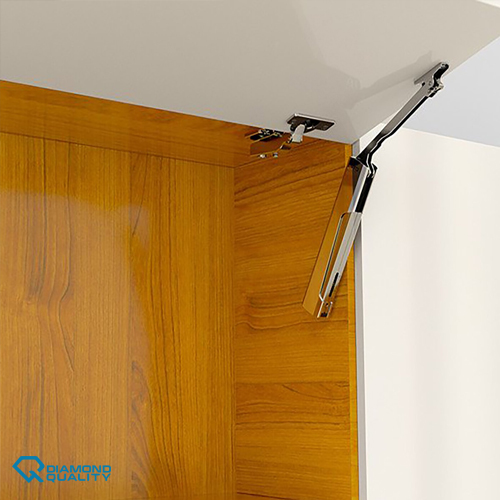

Top Stays SE Soft-Close Lift System
- Opening Angle: 105°
- Easy to open with low force
- Stays open at any desired position
- Smooth soft-close
- Door Adjustments via hinges
- Tool-free assembly and removal
Certainly! Here’s the product information presented in a table format:
| Model Number | Spring Strength | Power Factor Range | Spring Color | Supported Door Height (mm) | Minimum Cabinet Depth (mm) | Opening Angle |
|---|---|---|---|---|---|---|
| 105-SE00AL | Light | 200 – 1000 | Light Grey | 240 – 600 | 125 | 105° |
| 105-SE00AM | Medium | 500 – 1500 | Dark Grey | 240 – 600 | 125 | 105° |
| 105-SE00AH | Heavy | 960 – 2350 | White | 240 – 600 | 125 | 105° |
Additional Notes:
-
Power Factor Calculation:
Power Factor = Cabinet Height (mm) × Door Weight (kg) (including handles).Marathon Hardware+6Handles and More+6Marathon Hardware+6 -
Hinge Recommendations:
-
Use 3 hinges if cabinet width > 900mm or Power Factor > 1800.
-
Use 4 hinges if cabinet width > 1200mm or Power Factor > 2700.
-
-
Features:
-
Tool-free installation and removal.
-
3D adjustability (height, depth, side).
-
Suitable for wooden and aluminum doors.
-
Stays open at any position.Kitchen Fittings Direct+12Marathon Hardware+12Marathon Hardware+12Handles and More+6Marathon Hardware+6Marathon Hardware+6
-
