Top Stays SE Push-Open Lift System
🛠️ Short Product Description

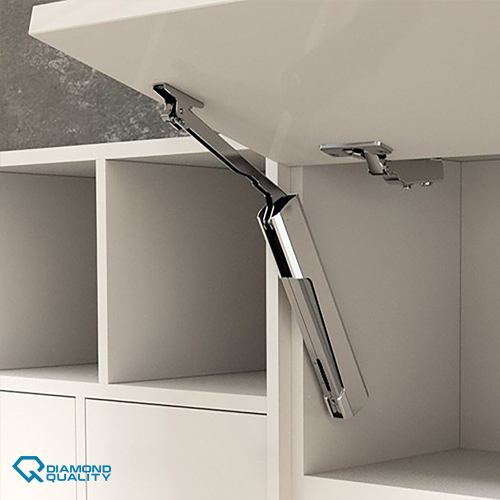

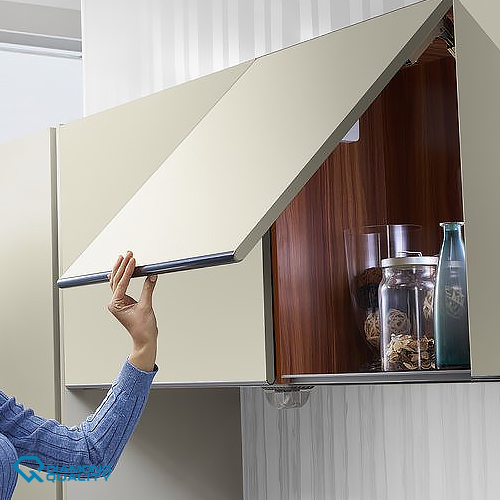

This soft-close lift system features a push-to-open mechanism, allowing upper cabinet doors to open smoothly with a simple press — no handles needed. Designed for medium-weight doors within specific height and power factor ranges, it opens to a 105° angle and stays open at any position. The system is tool-free to install and remove, and it’s compatible with both wooden and aluminum cabinet doors. Ideal for modern, handleless kitchen and storage designs.
📋 Product Specifications
| Model Number | Spring Strength | Power Factor Range | Spring Colour | Supported Door Height (mm) | Minimum Cabinet Depth (mm) | Opening Angle |
|---|---|---|---|---|---|---|
| 105-SE02P-AM | Medium | 500 – 1400 | Dark Grey | 240 – 600 | 125 | 105° |
🔧 Additional Details
-
Power Factor Calculation:
Power Factor = Cabinet Height (mm) × Door Weight (kg) (including handles). -
Hinge Recommendations:
-
Use 3 hinges if cabinet width > 900mm or Power Factor > 1800.
-
Use 4 hinges if cabinet width > 1200mm or Power Factor > 2700.
-
-
Features:
-
Push-to-open functionality with magnetic push catch included.
-

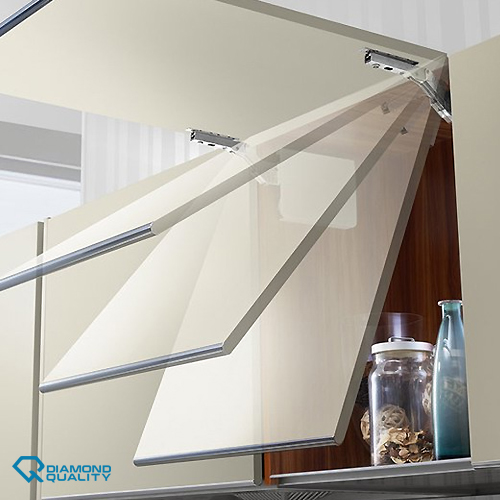

Stays open at any desired position.
-
Tool-free assembly and removal.
-

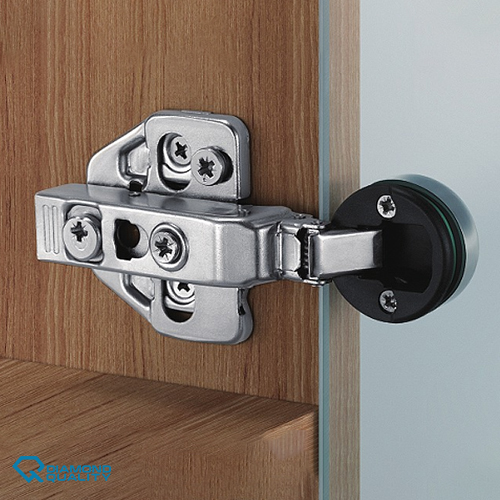

Door adjustments via hinges.
-
Suitable for wooden and aluminum doors.
-
Certified for 40,000 cycles.
-
-
Recommended Hinges:
Unsprung hinges are recommended for optimal performance.
