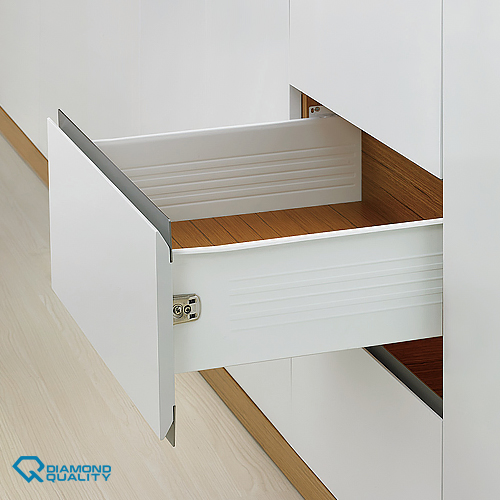

Single wall Drawer System Metalbox F12E-395
-
Medium-height metal drawer system with 150 mm sides
-
Self-closing runners with ¾ extension
-
Load capacity up to 25 kg
-
Powder-coated white finish
-
Tool-assisted screw-on installation
-
Two-way front panel alignment
-
Suitable for kitchen, office, and wardrobe applications
Product Description – Metal Drawer System (150 mm Side Height)-Single wall Drawer System Metalbox F12E-395
This medium-depth metal drawer system is ideal for storage areas that require additional vertical space, such as kitchen base cabinets, wardrobes, and office drawers. The sturdy single-wall steel structure offers long-lasting performance, while the integrated self-closing slides ensure smooth and controlled movement with every use.
Featuring an easy screw-on mounting design and two-way front panel adjustability, this system is simple to install and fine-tune. The drawer sides have a white epoxy-coated finish for a clean, modern look that fits seamlessly into a variety of cabinetry designs.
📋 Technical Specifications Table(Single wall Drawer System Metalbox F12E-395)
| Specification | Details |
|---|---|
| Drawer Type | Single-wall metal drawer |
| Side Height | 150 mm |
| Available Lengths | 270 mm – 550 mm |
| Slide Type | ¾ extension, self-closing runners |
| Load Capacity | Up to 25 kg |
| Material | Powder-coated steel |
| Finish | White (matte) |

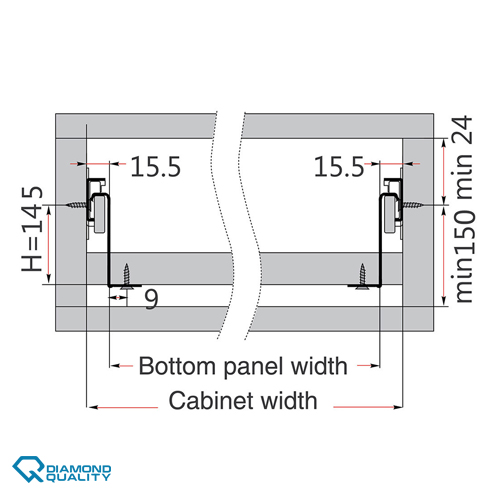

| Installation | Screw-on bottom panel mounting |
| Front Bracket Options | Screw-on, 10 mm dowels, or expansion dowels |
| Front Panel Adjustment | 2-way (height and tilt) |
| Recommended Use | Kitchen base drawers, wardrobes, office storage |
✅ Key Features
-
150 mm side height for increased drawer volume
-
Durable steel construction with white epoxy finish
-
Smooth ¾ extension with built-in self-closing action
-
Simple screw-on mounting and easy adjustment
-
Compatible with multiple drawer lengths and configurations
-
Ideal for kitchen cabinets, wardrobes, and workspaces
