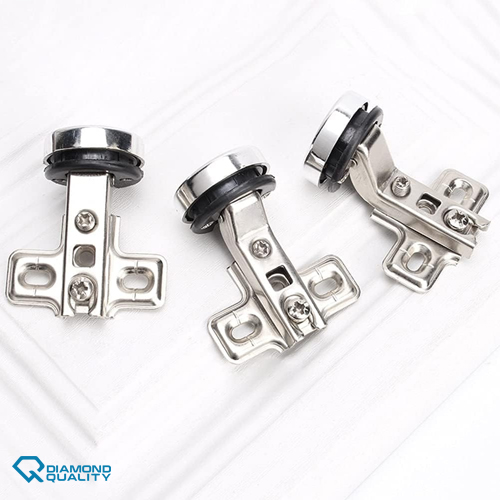

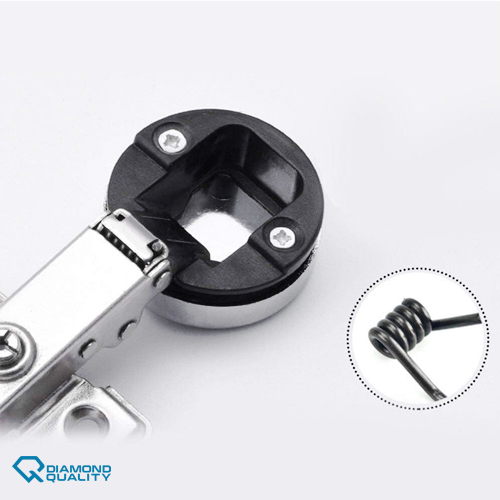

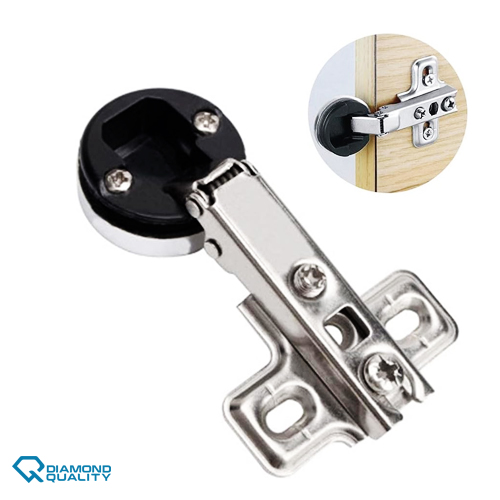

Pivot-Pro C80 Series Soft-Close Hinge
🛠️ Short Product Description
The Pivot-Pro C80 Series is a 110° soft-close hinge designed for frameless cabinets. It features a built-in hydraulic damper for smooth, silent closing, and supports full overlay, half overlay, and inset doors. With 3-way cam adjustment and a tool-free clip-on design, it offers precision alignment and easy installation — ideal for premium cabinetry applications.
📋 Product Specifications – Pivot-Pro C80 Series Soft-Close Hinge
| Feature | Specification |
|---|---|
| Opening Angle | 110° |
| Overlay Options | Full Overlay, Half Overlay, Inset |
| Mounting Type | Screw-On |
| Hinge Cup Diameter | 35 mm |
| Hinge Cup Depth | 11.5 mm |
| Drilling Distance (K) | 3 – 6 mm |
| Door Thickness Range | 14 – 24 mm |
| Adjustment Type | 3-Way Cam Adjustment (Height, Depth, Side-to-Side) |
| Closing System | Integrated Hydraulic Soft-Close Damper |
| Material | Cold-Rolled Steel |
| Finish | Nickel-Plated |
| Hinge Type | Clip-On (tool-free detachment) |
| Mounting Plate Compatibility | Soft-Close Plates Only |
| Cycle Tested | > 40,000 open/close cycles |
| Recommended Screws | Euro Screws 6.3 × 11 mm (not included) |
| Application | Frameless cabinets – for full overlay, half overlay, and inset doors |
| Max Opening Torque | ~2.3 Nm |
🔧 Key Features
-
Hydraulic Soft-Close: Ensures silent, controlled door closing with a hidden damper.
-
Extended Damper Stroke: Slows the door gently even from wide angles.
-
3-Way Cam Adjustment: Allows precise positioning in height, depth, and side-to-side.
-
Clip-On Installation: Enables fast, tool-free mounting and removal.
-
Durable Construction: Steel body with corrosion-resistant nickel finish.
-
Flexible Application: Compatible with various cabinet overlay configurations.
