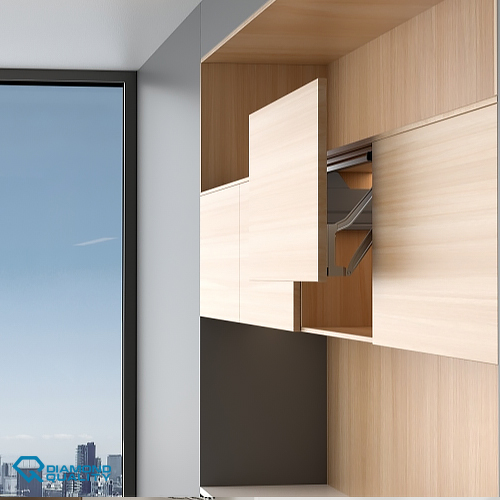

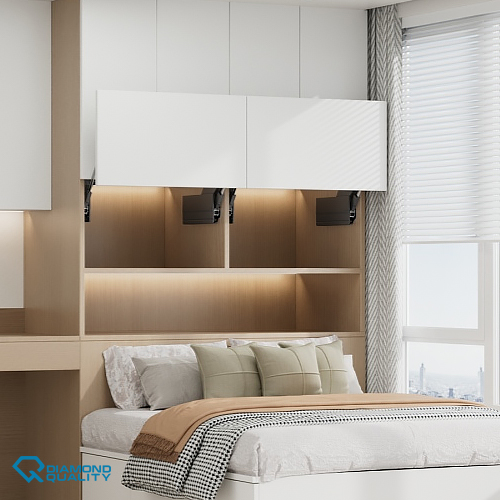

Lifting Systems TOP-STAYS SK
-
Soft-close flap door lift system
-
Adjustable opening force with Power Factor settings
-
Fits doors 250-500mm tall
-
Minimum cabinet depth of 240mm
-
3-way door adjustment after installation
-
Tested durability over 60,000 cycles
Top-Stays SK Lift System – Soft-Close Flap Door Support
Product Overview
The Top-Stays SK is a reliable and elegant lift system designed for smooth operation of upper cabinet flap doors. Featuring a soft-close mechanism and adjustable opening force, it provides ease of access and silent closing, enhancing the user experience in kitchens, offices, and other storage areas.
Engineered for doors ranging from 250mm to 500mm in height and requiring a minimum cabinet depth of 240mm, this lift system offers three-way adjustability (height, side, and depth) to ensure precise door alignment. Its durable construction supports long-term use, withstanding tens of thousands of open-close cycles.
Technical Specifications(Lifting Systems TOP-STAYS SK)
| Specification | Details |
|---|---|
| Type | Lift-up support for flap doors |
| Opening Angle | Approximately 107° |
| Adjustable Opening Force | Light, Medium, Heavy (Power Factor setting) |
| Compatible Door Heights | 250mm to 500mm |
| Minimum Cabinet Depth | 240mm |
| Closing Control | Soft-close damping |
| Door Alignment Adjustment | 3-way (height, side, depth) |
| Durability | Tested for 60,000+ cycles |
| Aesthetic Finish | Includes decorative caps |
| Ideal Applications | Upper kitchen cabinets, wardrobes, office storage |
Lifting Systems TOP-STAYS SK
-
Soft-close lift for quiet, controlled door movement
-
Adjustable lift resistance to suit door weight and size
-
Full 107° opening for easy access
-
Three-dimensional adjustment for perfect fit
-
Compact design requiring minimal cabinet depth
-
Durable design for heavy daily use
-
Modern, handle-free cabinet operation
