Lifting Systems TOP-STAYS SF
-
Full 107 ° access with stay-anywhere door positioning
-
Hydraulic soft-close brings the flap down quietly and safely
-
Adjustable “Power Factor” dial matches lift force to door weight
-
Three-way fine-tuning for perfect reveals after installation
-
Slim body fits 16–19 mm side panels; needs only 240 mm depth
-
Endurance-tested to 60 k cycles for long-term reliability
-
Discreet cover caps for a clean, contemporary interior
Soft-Close Lift-Up Flap Door System — SF Series
Product Overview

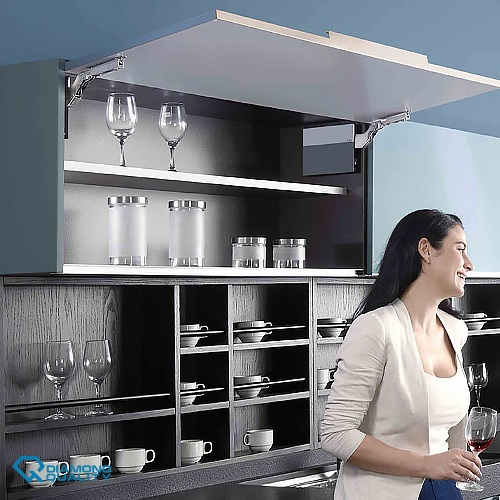

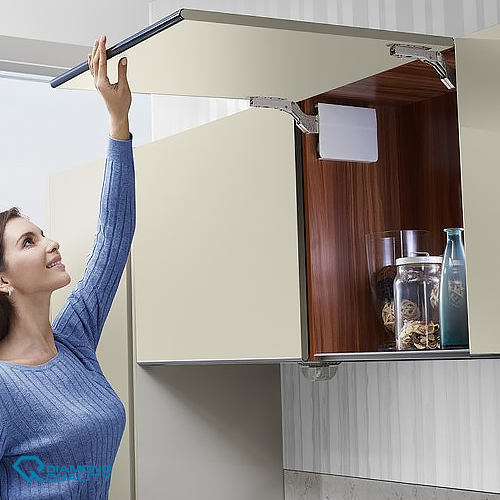

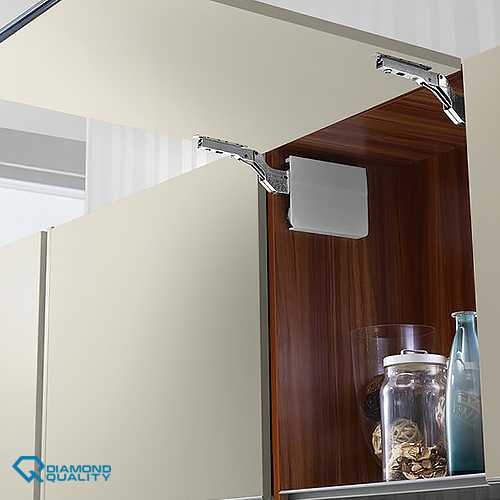

The SF Series lift-up mechanism turns upper cabinets into effortless, handle-free storage. A calibrated spring-assist core raises the flap door smoothly to a 107 ° opening angle, holds it at any position, and returns it to a gentle, silent close. Three-way post-installation adjustment (height ±2 mm, side ±1.5 mm, tilt ±2 mm) guarantees millimetre-perfect alignment in premium kitchens, offices, and bathroom wall units.
Technical Specifications (Lifting Systems TOP-STAYS SF)
| Specification | Detail |
|---|---|
| Mounting style | Inside side-panel, hinge-less lift arm |
| Opening angle | 107 ° ±2 ° |
| Door height range | 250 – 700 mm |
| Recommended door weight¹ | 1.8 – 13 kg (matched by light / medium / heavy models) |
| Minimum cabinet depth | 240 mm |
| Closing control | Integrated hydraulic soft-close piston |
| Adjustment after fitting | 3-axis: height, side, depth |
| Cycle life | ≥ 60 000 open/close cycles (full load) |
| Finish options | Satin grey or satin white cover caps |
| Installation | Clip-on front brackets, Euro-screw fixing |
¹Select the model (L / M / H) that corresponds to the door height × weight chart in the installation guide.
