TS10 Synchronized Full-Extension Soft-Close Undermount Slides – Product Overview

The TS10 model is a high-performance synchronized undermount drawer slide offering full-extension functionality and a built-in soft-close mechanism. Designed for premium cabinetry and furniture applications, this system ensures whisper-quiet motion, excellent stability, and effortless closing — even under full load.

With tool-free 3D adjustments and a clip-on installation system, it delivers both precision and convenience for professional installations.


Key Features (Drawer Slides  MAGIC MOVE  TS10-412)

  • Synchronized movement for smooth and balanced drawer glide

  • Full-extension access for maximum visibility and usability

  • Integrated soft-close damper for silent and controlled closing

  • Tool-free adjustment system (height, side, depth)

  • Clip-on design for fast installation and easy removal

  •  Suitable for drawer sides 16–19 mm thick

  •  Available in 40kg and 60kg load capacities

  • Zinc-plated surface for high corrosion resistance

  • Long lifespan with over 80,000 open-close cycles


Technical Specifications

Specification Details
Mounting Type Undermount (Concealed)
Extension Type Full Extension
Synchronization Mechanism Yes (dual-slide linked system)
Soft-Close Function Integrated hydraulic damper
Load Capacity 40 kg or 60 kg
Supported Drawer Sides 16–19 mm thickness

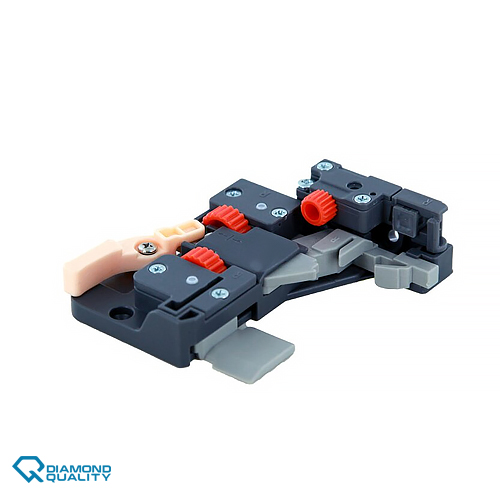

Adjustment Mechanism Tool-free (Height / Side / Depth)
Roller System Nylon for quiet, low-friction glide
Finish Zinc-coated for rust resistance
Installation Type Clip-on with front release latches
Cycle Life 80,000+ open/close cycles

Applications (Drawer Slides  MAGIC MOVE  TS10-412)

  • 🍽️ Kitchen drawers with full access and soft-close comfort

  • 🛋️ Wardrobes and bedroom units with deep or heavy drawers

  • 🧺 Laundry or utility room cabinetry in humid environments

  • 🗄️ Office furniture requiring robust and silent drawers

  • 🚪 Ideal for luxury cabinets where flawless function is key


 Quick Highlights

  • Full-extension for total drawer access

  • Built-in synchronized soft-close damper

  • Tool-free height, depth, and side adjustments

  • Clip-on mounting with quick-release levers

  • Compatible with 16–19 mm drawer sides

  • Supports up to 60 kg depending on model

  • Corrosion-resistant finish for wet environments

  • Tested for 80,000+ smooth open-close cycles
