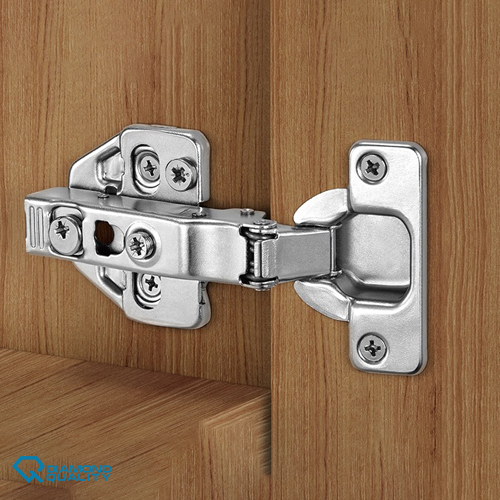

C-80 Soft-Close Hinge for 110°
🛠️ Short Product Description
This 110° soft-close hinge is designed for full overlay frameless cabinet doors. It features a hydraulic damping mechanism for smooth, silent closure and a clip-on arm for quick, tool-free installation. With precise 2-way cam adjustments and a nickel-plated steel body, it delivers reliable performance for modern cabinetry applications.
📋 Complete Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | 105-C80A675F |
| Mounting Type | Screw-on with Euro screw (pre-drilled dowel optional) |
| Opening Angle | 110° |
| Hinge Cup Diameter | 35 mm |
| Hinge Cup Depth | 11.5 mm |
| Drilling Distance (K) | 3 mm – 6 mm |
| Door Thickness Range | 16 mm – 26 mm |
| Material | Cold-rolled steel |
| Finish | Nickel-plated |
| Closing System | Integrated soft-close damper (hydraulic) |
| Adjustment Type | 2-Way Cam Adjustment (depth & side) |
| Overlay Type | Full overlay |
| Mounting Plate Compatibility | Soft-close plates only |
| Cup Fixing System | Screw-on |
| Hinge Arm Fixing | Clip-on (tool-free detachment) |
| Cycle Tested | 40,000+ cycles (EN 15570 certified) |
| Recommended Screws | Euro Screws 6.3 × 11 mm (not included) |
| Application | Frameless cabinets – full overlay doors |
| Max Opening Torque | ~2.3 Nm (based on spring force design) |
🔧 Technical Features
-
Hydraulic Soft-Close: Built-in damper ensures quiet and controlled closure.
-
Tool-Free Clip-On Arm: Easily removable from the mounting plate for fast installation or adjustment.
-
2-Way Adjustment: Cam mechanism allows precise depth and side positioning.
-
Nickel-Plated Steel: Corrosion-resistant finish for long-lasting performance.
-
Heavy-Duty Durability: Certified to exceed 40,000 open/close cycles.
