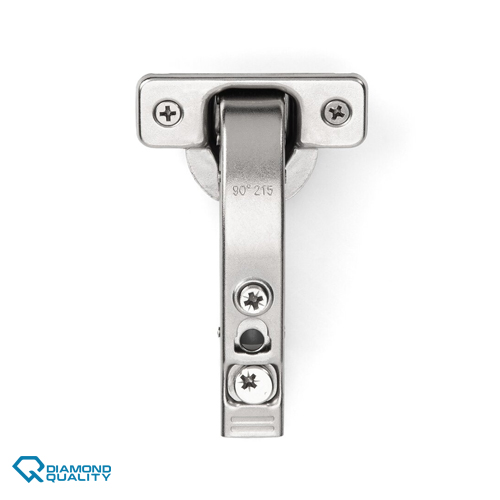

C-80 Soft-Close Hinge Blind Corner 90°
🛠️ Short Product Description
A premium hinge designed for blind corner cabinet doors that open to 90°. It features a built-in soft-close system that ensures smooth and silent door closing. With tool-free clip-on mounting, precise 2-way adjustment, and a nickel finish, it’s ideal for high-end cabinetry and long-term use. Suitable for doors 14–24 mm thick.

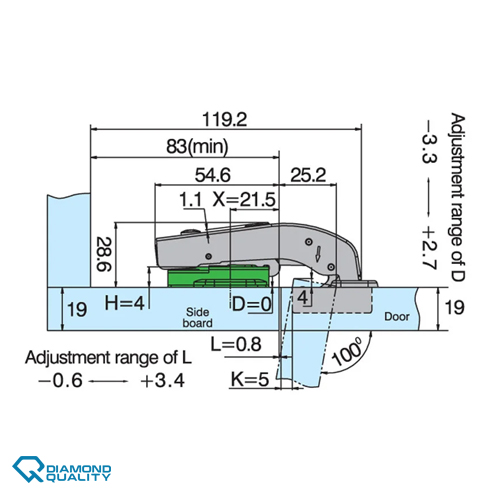

Product Specifications
| Model Number | Mounting Type | Opening Angle | Cup Diameter | Cup Depth | Door Thickness Range | Drilling Distance | Adjustment Type | Closing Type | Material | Finish | Hinge Type | Compatible Plate Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105-C80J675NF | Dowel (8mm) | 90° | 35 mm | 11.3 mm | 14 – 24 mm | 3 – 7 mm | 2-Way Cam | Soft-Close | Steel | Nickel | Clip-On | Soft-Close Plates Only |
🔧 Key Features
-
Soft-Close Mechanism: Ensures smooth and quiet closing.
-
Optimized Spring Force: Allows for easy movement from open to close.
-
Enhanced CAM Adjustment: Offers better precision and long-term durability.
-
Clip-On Mounting: Fast, tool-free installation and removal.
-
Nickel Finish: Durable and resistant to corrosion.
-
Use Case: Ideal for blind corner cabinets with a 90° door opening.
-
Door Compatibility: Fits 14–24 mm thick wooden doors.
