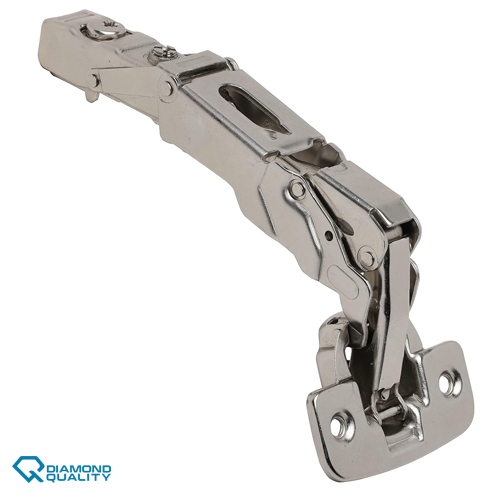

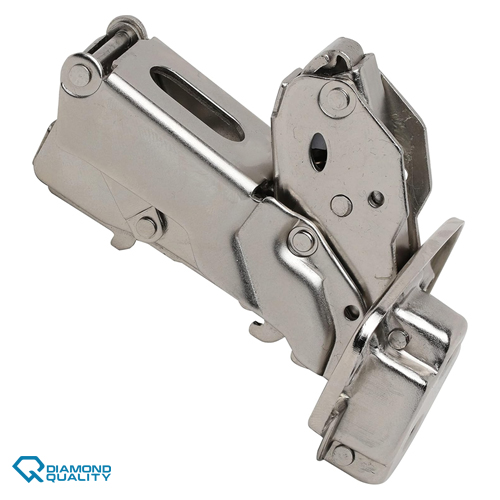

155° Wide-Angle Soft-Close Hinge – Product Overview(C80 Wide Angle Hinges, 155°opening angle, Full overlay models)

This 155-degree wide-opening soft-close hinge is specially engineered for corner cabinets and blind corner units, providing excellent accessibility and smooth operation. With its built-in soft-close damper, it guarantees quiet and gentle closing, even when the door is opened to a wide angle.

Ideal for modern kitchens, wardrobes, and custom cabinetry where maximum door swing and durability are essential, this hinge combines functionality with ease of installation thanks to its clip-on mounting system.


Key Features

  • Wide 155° opening angle for full access to cabinet interiors

  • Integrated soft-close damper for silent and smooth door closing

  • Full overlay design for edge-to-edge cabinet door coverage

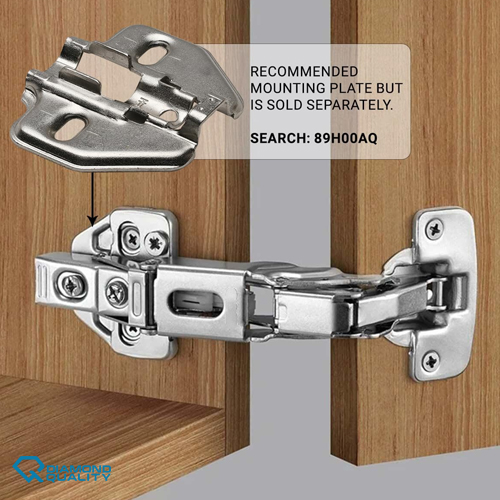

  • Clip-on (Snap-On) mounting plate for quick installation and removal

  • Standard 35mm hinge cup diameter and 11.5mm cup depth

  • Designed for door thicknesses between 16–26 mm

  • Nickel-plated finish for excellent corrosion resistance

  • Precise side and depth adjustments to ensure perfect door alignment

  • Tested for durability with over 80,000 open-close cycles

  • Suitable for use in humid environments such as kitchens and bathrooms


Technical Specifications

Specification Details
Hinge Type Concealed Soft-Close Hinge
Opening Angle 155°
Hinge Cup Diameter 35 mm
Hinge Cup Depth 11.5 mm
Mounting Style Clip-On (Snap-On)
Overlay Type Full Overlay
Door Thickness 16–26 mm
Soft-Close Mechanism Integrated Hydraulic Damper

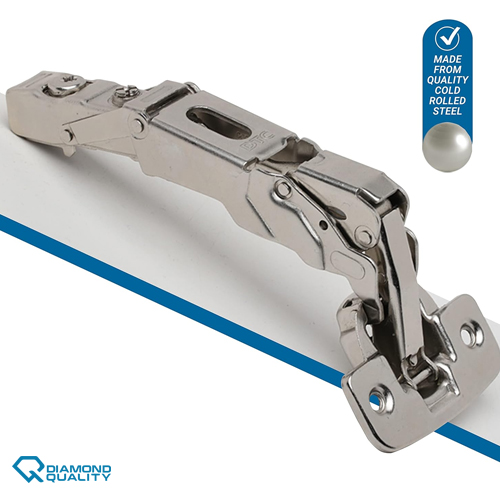

Material Steel with Nickel-Plated Finish
Side Adjustment ±2 mm
Depth Adjustment ±3 mm
Height Adjustment ±2 mm
Durability 80,000+ cycles
Corrosion Resistance High – suitable for humid areas

Applications

  • Corner cabinets requiring wide door opening

  • Blind corner units in kitchens and wardrobes

  • Full overlay door systems

  • High-use residential and commercial cabinetry

  • Suitable for humid environments like kitchens and bathrooms


Quick Highlights

  • 155° wide-angle opening for maximum access

  • Built-in soft-close for quiet, smooth door operation

  • Clip-on mounting for easy installation and removal

  • Full overlay compatibility for seamless design

  • Durable nickel-plated finish for corrosion resistance

  • Adjustable side, depth, and height for perfect fit

  • Suitable for doors 16–26 mm thick

  • Tested for long-lasting durability
